Emseal
Emseal Emshield Wfr2 2 X 4 X 6.56' White Fr
Part #EMSEAL WFR22WH
Pickup In store, Our Truck, UPS/LTL Shipping Options
Free Truck Delivery On Orders Over $500
Need Help? Find A Branch | Contact Us

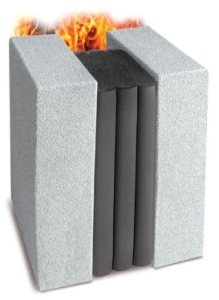

- 2" Joint, 4" Depth of Seal, 6.56' Stick, Multiple Silicone Bellow, Water Tight, 2-Side, White Emshield® Fire Rated Wall Expansion Joint Primary SealantA fire rated wall expansion joint, Emshield WFR2 (Wall, Fire-Rated 2-Hours) is watertight, fire-rated, dual-sided and a primary seal for repair, retrofit, and new installation in structural building expansion joints and construction joints in vertical plane wall and head-of-wall applications. Emshield WFR2 is a 2-hour UL-certified fire barrier and preformed, high movement, alternate to fire caulk and fire stop materials. (For 3-hour fire rating see Emshield WFR3). Emshield WFR2 features dual-sided silicone sealing surfaces adhered to a fire-retardant impregnated foam backing. Both sides of the expansion joint are waterproof and fire-rated. Emshield WFR2 eliminates the need for fire blankets, mineral wools, liquid sealants, fire caulk, cover plates, or other fire stop materials. It can be used alone or under any other expansion joint cover, plate or filler where depth of substrate allows–with Emshield WFR2 one install does it all.
- Watertight Emshield Products are Installed with the Silicone Bellows Facing the Weather to Ensure Watertightness
- a Field-Applied Sealant Band of Supplied Silicone at the Bellows to Substrate Interface Seals Substrate Irregularities and Completes the Installation
- UL/ULC Fire-Rated Tested in Accordance with the Cycling and Fire Endurance Requirements of UL-2079, Listed by UL and Manufactured Under UL's Follow Up Service Ensuring that What is Shipped is the Same As What Was Tested
- Non-Invasive Anchoring There are No Hard Metal-To-Substrate Connections with Emshield
- The System is Locked to the Joint Faces by Means of the 1) Backpressure of the Foam
- 2) the Epoxy Adhesive and 3) the Injected Sealant Bands at the Joint Face
- Joint-Size Variation through Size-Switching, Material Can be Supplied to Handle Variations in Joint Size
- Sound Attenuation Joints Sealed with Emseal Impregnated Foam Sealants Offer Exceptional Acoustic Dampening and Feature STC/OITC Sound Transmission Coefficients that Can Meet or Exceed that of the Assembly Into Which They are Installed
Brand: Emseal Applicable Standard: UL (Canada and US), ULC, ASTM E1966/E119/E1399, ABAA, USGBC LEED, ANSI/GBI 01, EQ 7/7.1, CALGreen, LEED, ISO 14001/9001 Color: White Type: Multiple Silicone Bellow, Water Tight, 2-Side
